Modular
Ringlock System
The pinnacle of modular structural support. Our modular Ringlock scaffolding system utilizes precision-engineered multi-directional rosette nodes, allowing up to 8 connections per level. Build complex, high load-bearing geometries faster and safer than traditional tubular arrays.
%20Ringlock%20product%20(1).CDIN6Fb2_1decq1.webp)
System Architecture
Unparalleled engineering at every node. Our Ringlock components form a rigid, unyielding matrix designed for extreme industrial environments.
Ringlock%20Vertical.B5nV4-zG_ZAdoom.webp)

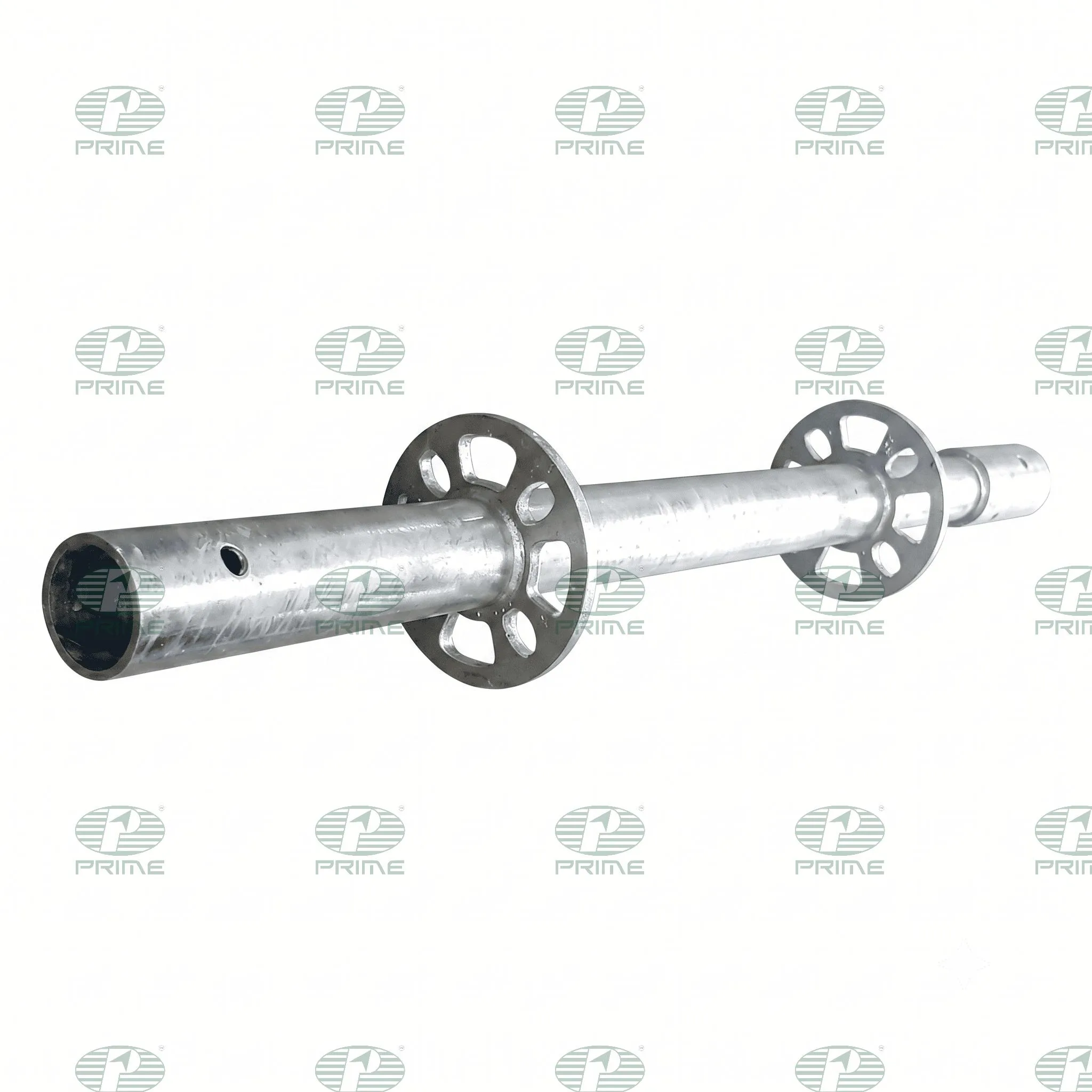

Vertical Standards
High-tensile steel tubes featuring welded rosette rings every 500mm, forming the vertical backbone of the structure.
Ringlock%20Ledger.DC8oXobi_2tzOpE.webp)

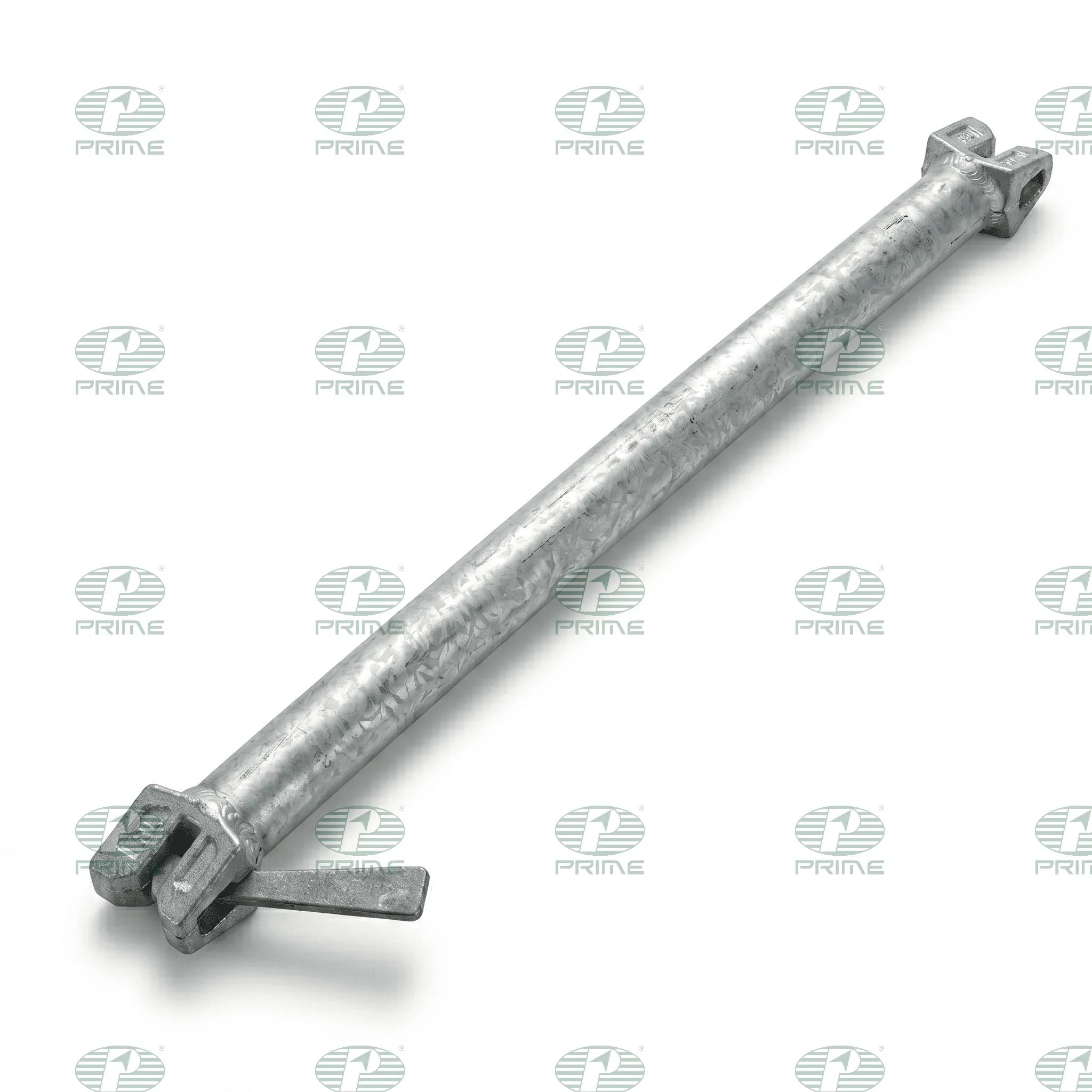

Horizontal Ledgers
Connecting pipes equipped with cast steel wedge heads that slide instantly into the vertical rosette slots.
Ringlock%20Diagonal%20Brace.vZ1dMENj_Z23v4Yb.webp)

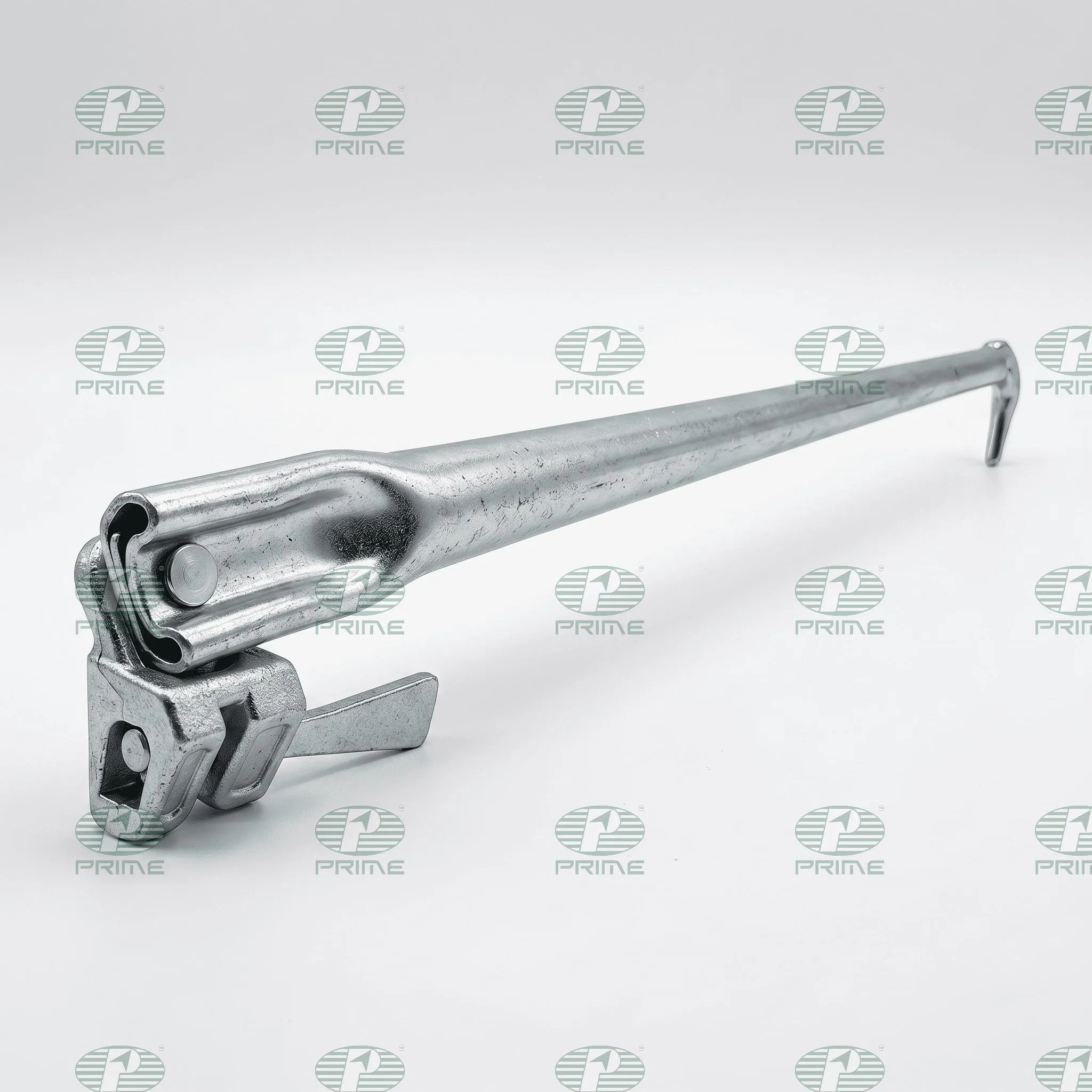

Diagonal Braces
Vital lateral supports that utilize wedge-lock pins to create triangular rigidity, completely eliminating structural sway.
Ringlock%20Adjustable%20Jack.gXClf4bw_Zgx36D.webp)

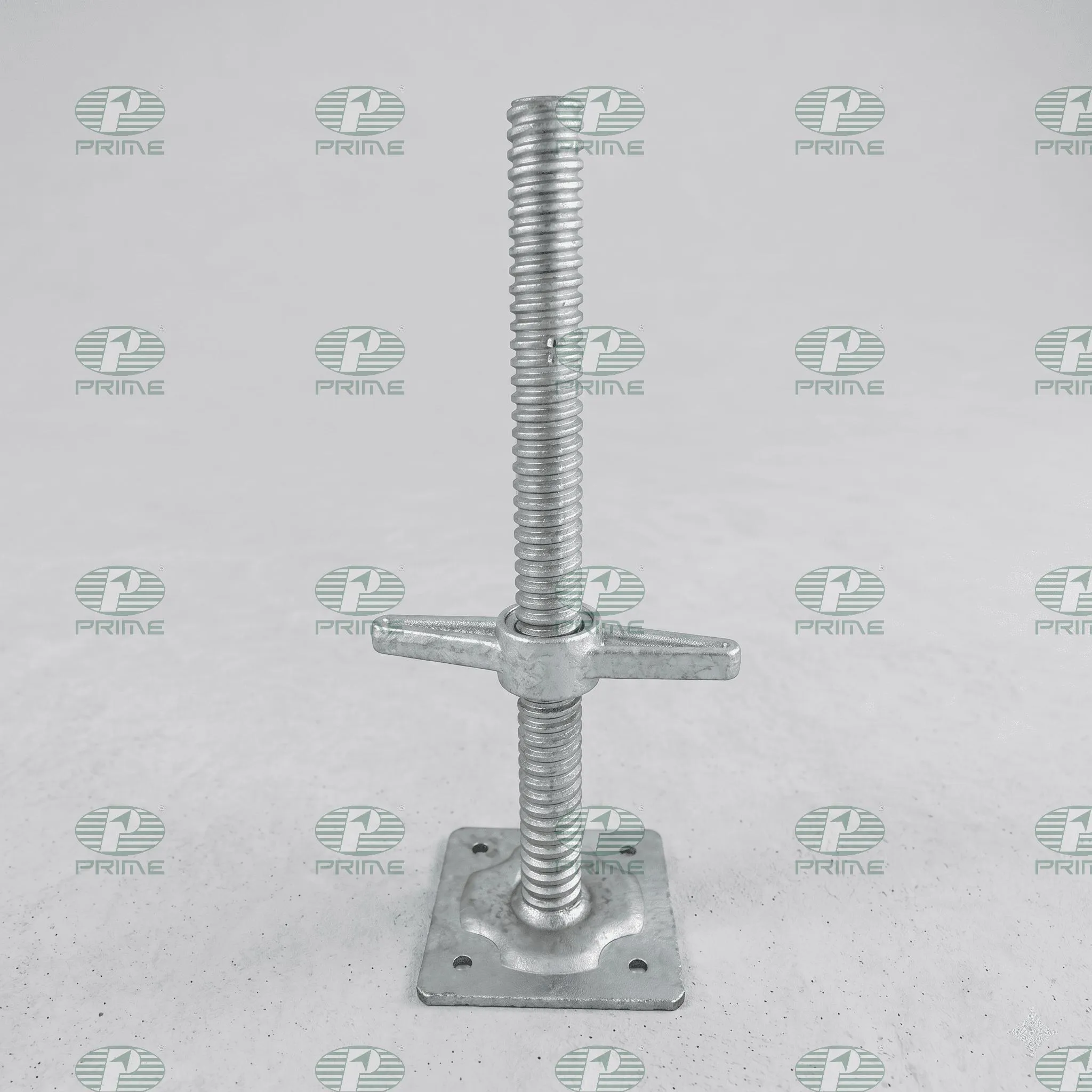

Adjustable Jacks
Solid steel threaded bases designed to ensure the entire scaffold remains perfectly level on uneven ground.
Engineered for Extreme Environments
Ringlock is the elite standard for complex structural demands. From circular tank maintenance to high-altitude facades, it adapts to any shape.
Ringlock%20Curved%20_%20Round%20Tanks.CnpU7Ozo_Z2tULxJ.webp)

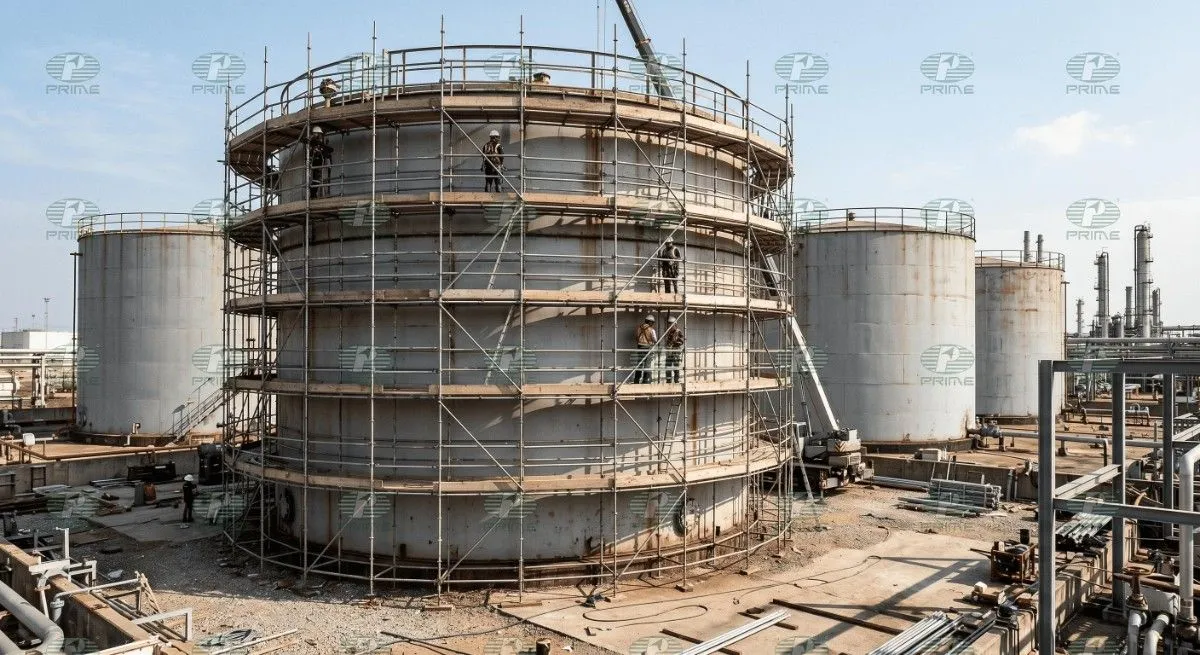

Curved & Tank Structures
The rosette node allows connections at non-right angles, perfectly hugging curved petrochemical tanks and silos.
Ringlock%20Bullet%20Train%20_%20Metrorail.CT1OjzS__2i9fXK.webp)

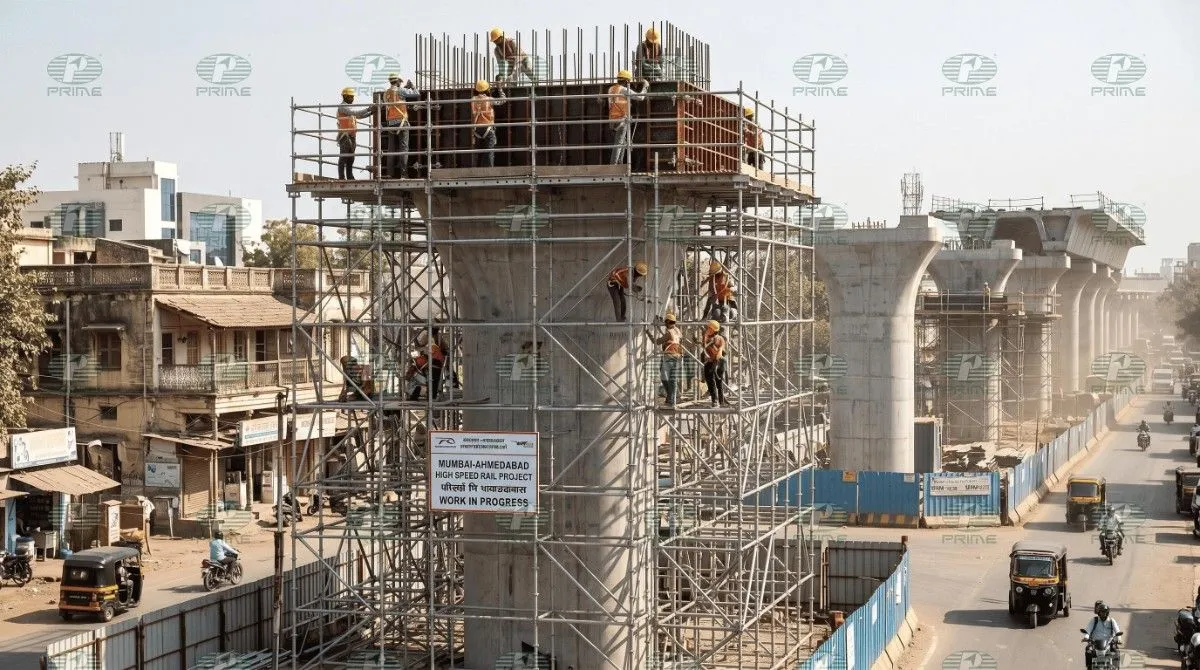

Bullet Train & Metrorail
Immense load capacity allows Ringlock to handle the heavy demands of modern elevated transit and railway engineering.
Ringlock%20Heavy%20Staging%20_%20Events.B723ISWX_Z1IgmW6.webp)

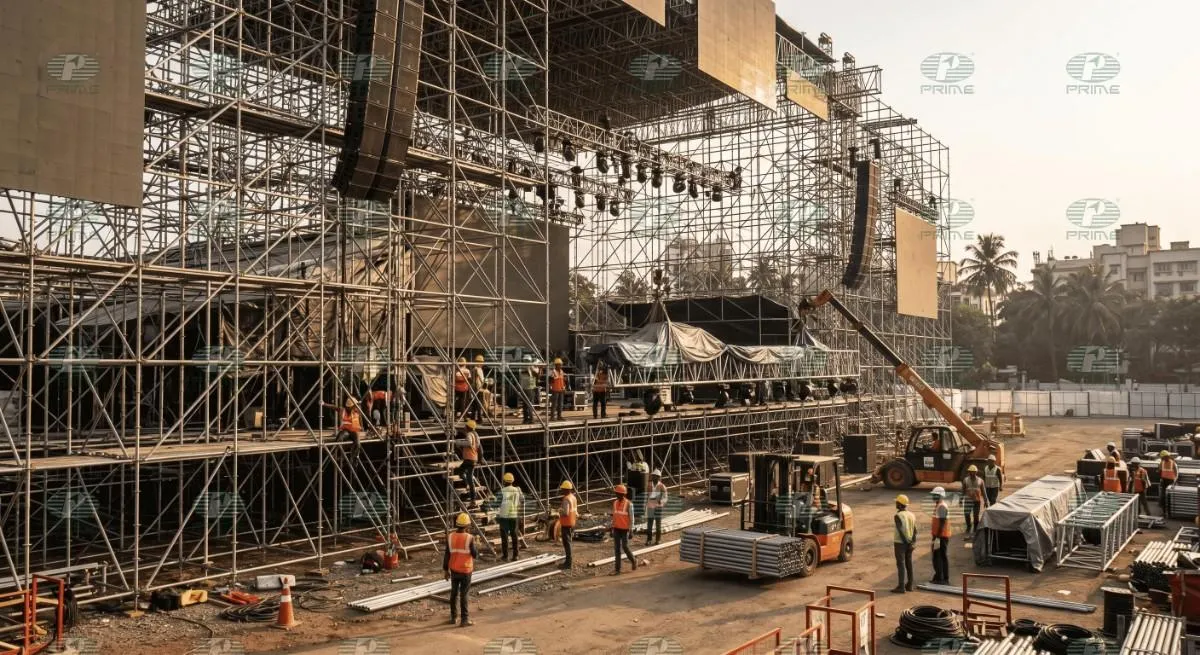

Heavy Event Staging
Rapid assembly speed makes it the premier choice for erecting massive, temporary load-bearing stages and grandstands.
Rapid Erection Protocol
Hammer-lock technology means a 3-man crew can erect tons of support framework in hours, not days.
Slot the Ledger
Slide the cast-steel wedge head of the horizontal ledger directly into one of the 8 holes on the vertical rosette.
Hammer to Lock
Drive the captive wedge pin down with a standard scaffolding hammer. The joint is now friction-locked and secure.
Brace the Matrix
Attach diagonal braces across the nodes. The entire bay is now self-squared and load-bearing ready.
See It. In Action .
Discover the Prime Steeltech India modular Ringlock Scaffolding System – a high-strength modular scaffolding solution designed for industrial, infrastructure, commercial, and maintenance projects.
Watch our manufacturing process in action
Technical Specifications
| Parameter | Specification | Compliance Standard |
|---|---|---|
| Steel Grade | Q345 / S355 High-Tensile Steel | IS 1161 / EN 10219 |
| Tube Dimensions | 48.3mm OD x 3.2mm Wall Thickness | Global Standard |
| Rosette Capacity | Up to 8 connections (4 large, 4 small) | 360-Degree Matrix |
| Surface Finish | Hot-Dip Galvanized (>80 Microns) | ISO 1461 Anti-Rust |
| Wedge Head | Precision Cast Steel | High Impact Resistant |
