Anti-Skid
Walkway Planks
The absolute foundation of safe industrial elevation. Our premium GI planks are roll-formed from high-tensile steel for maximum structural rigidity. Eliminate timber hazards with India's most secure, anti-slip scaffolding boards.
Our Models
Six configurations across our 2-Fold and 3-Fold platforms, each available with or without hooks, or with a reinforced dog-ear hook for demanding sites.
Walkway%20Plank%20Hook.SxpzK5VS_ShOiR.webp)

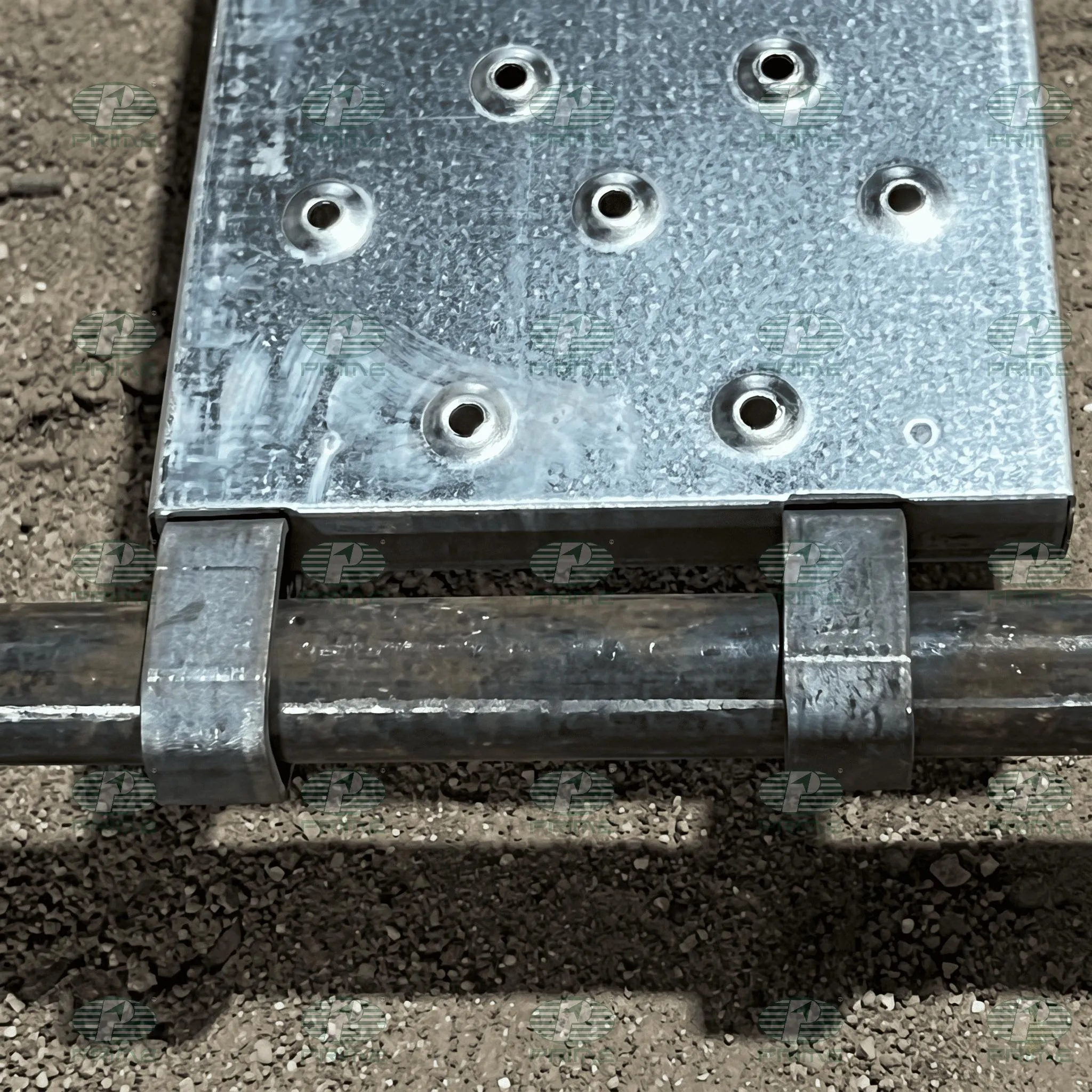

2-Fold2-Fold With Hook
Our standard double-fold plank with hemispherical hooks that seat directly onto ledger pipes for fast, tool-free installation.
More InformationWalkway%20Plank%20GP%20Sheet.B-Kb-6hD_Z1yd5vw.webp)
2-Fold2-Fold Without Hook
The same double-fold rigidity in a hookless format, designed to rest flush on custom bearers and non-standard support frames.
More InformationWalkway%20Plank%20Anti-Skid%20Dimples.BsYMVHlC_ZSsW6x.webp)
2-Fold2-Fold With Dog-Ear Hook
A double-fold plank fitted with reinforced dog-ear hooks for extra lateral grip on ledgers exposed to vibration or heavy foot traffic.
More InformationWalkway%20Plank%20Stiffner.DZYMbCnI_geh9U.webp)

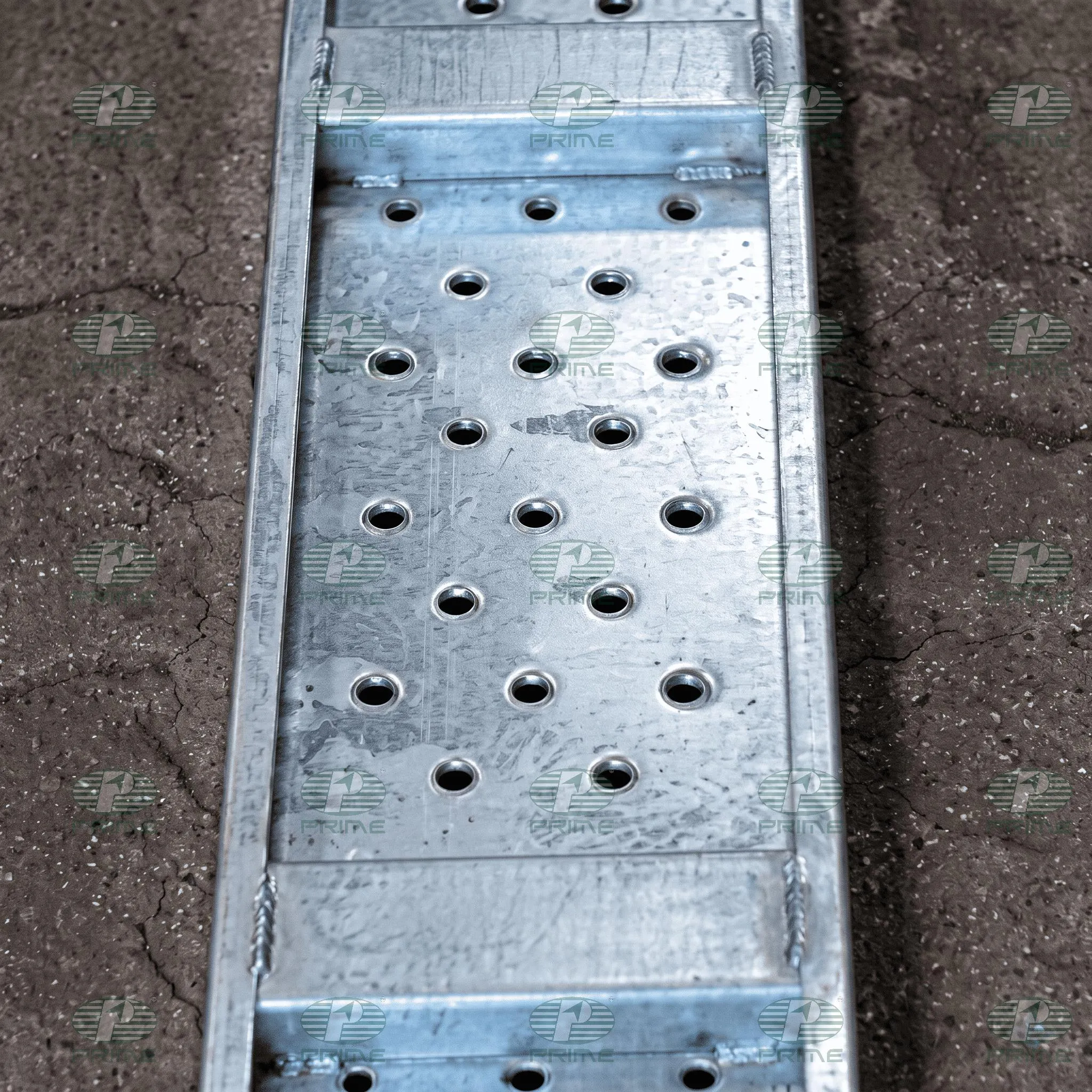

3-Fold3-Fold With Hook
A wider triple-fold profile with hemispherical hooks, adding extra stiffness for longer spans and heavier industrial loads.
More InformationWalkway%20Plank%20Oil%20_%20Gas%20Refinery.XHJYt5cB_1jHWuP.webp)
3-Fold3-Fold Without Hook
Triple-fold strength in a hookless configuration, suited to fixed platforms and applications with custom mounting requirements.
More InformationWalkway%20Plank%20High-Rise%20Buildings.BzV-Ihq3_1Fg1sX.webp)
3-Fold3-Fold With Dog-Ear Hook
Our heaviest-duty plank, combining triple-fold stiffness with dog-ear hooks for maximum security on high-vibration and high-traffic sites.
More InformationCore Components

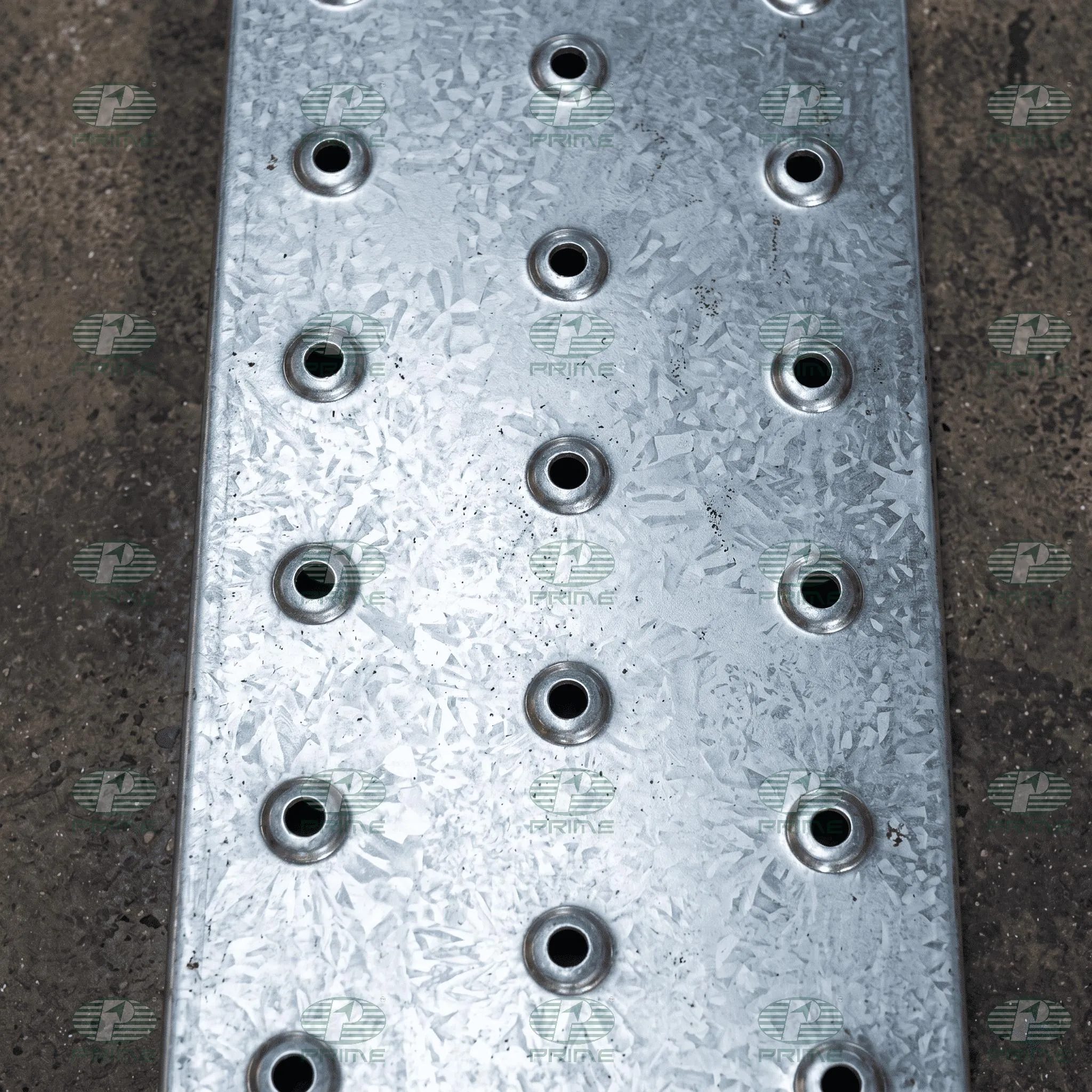

Anti-Skid Dimples
Our special zig-zag pattern antiskid dimple surface with a density of 246.11 dimples per meter square provides superior traction.
Stiffeners
Internal stiffners prevent sagging and maintain structural integrity.
C-type Hooks
Hooks are made such that our width is more than industry standard and the thickness is 6mm

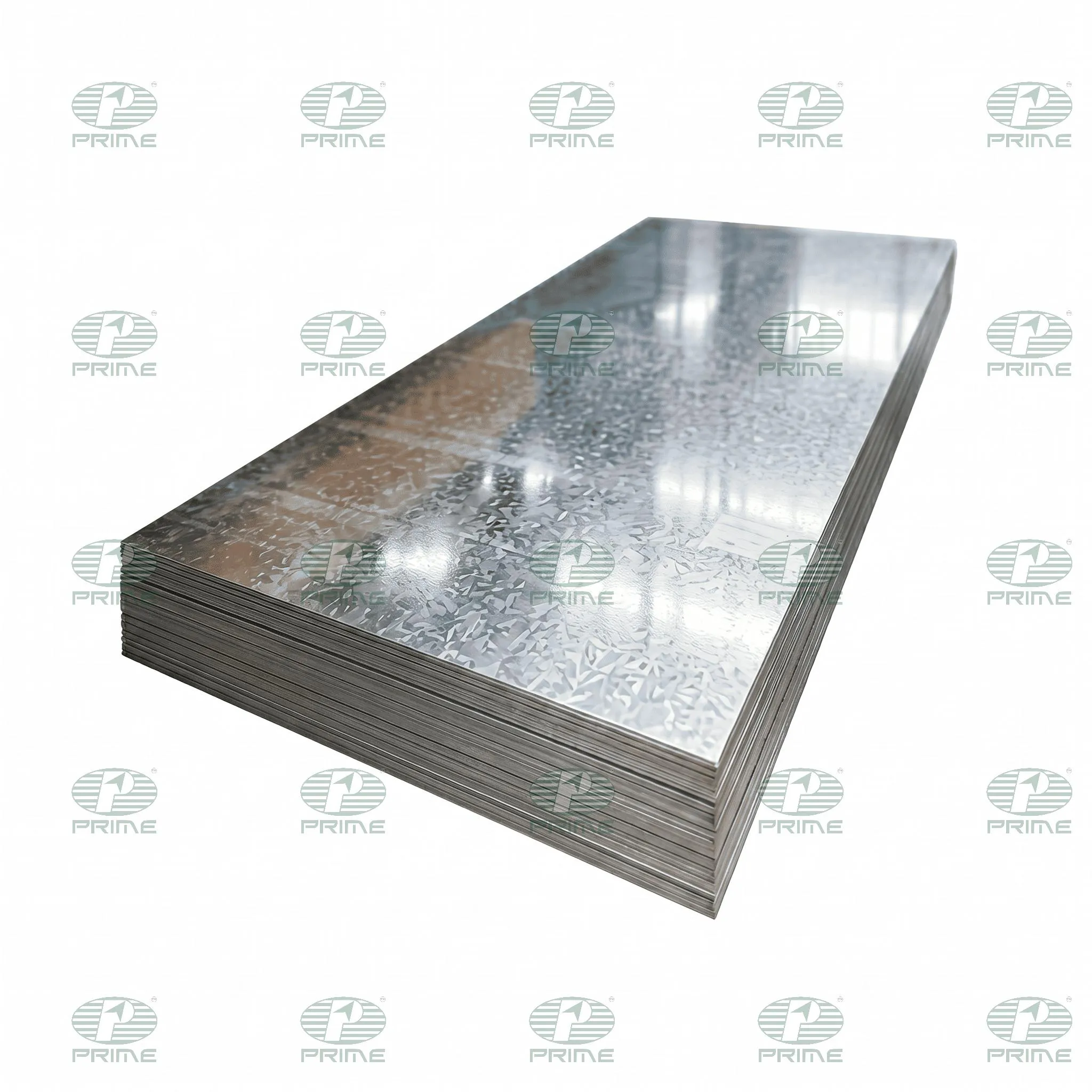

GP Sheet
Manufactured from premium pre-galvanized steel sheets for superior corrosion resistance and durability
Engineered for Extreme Environments

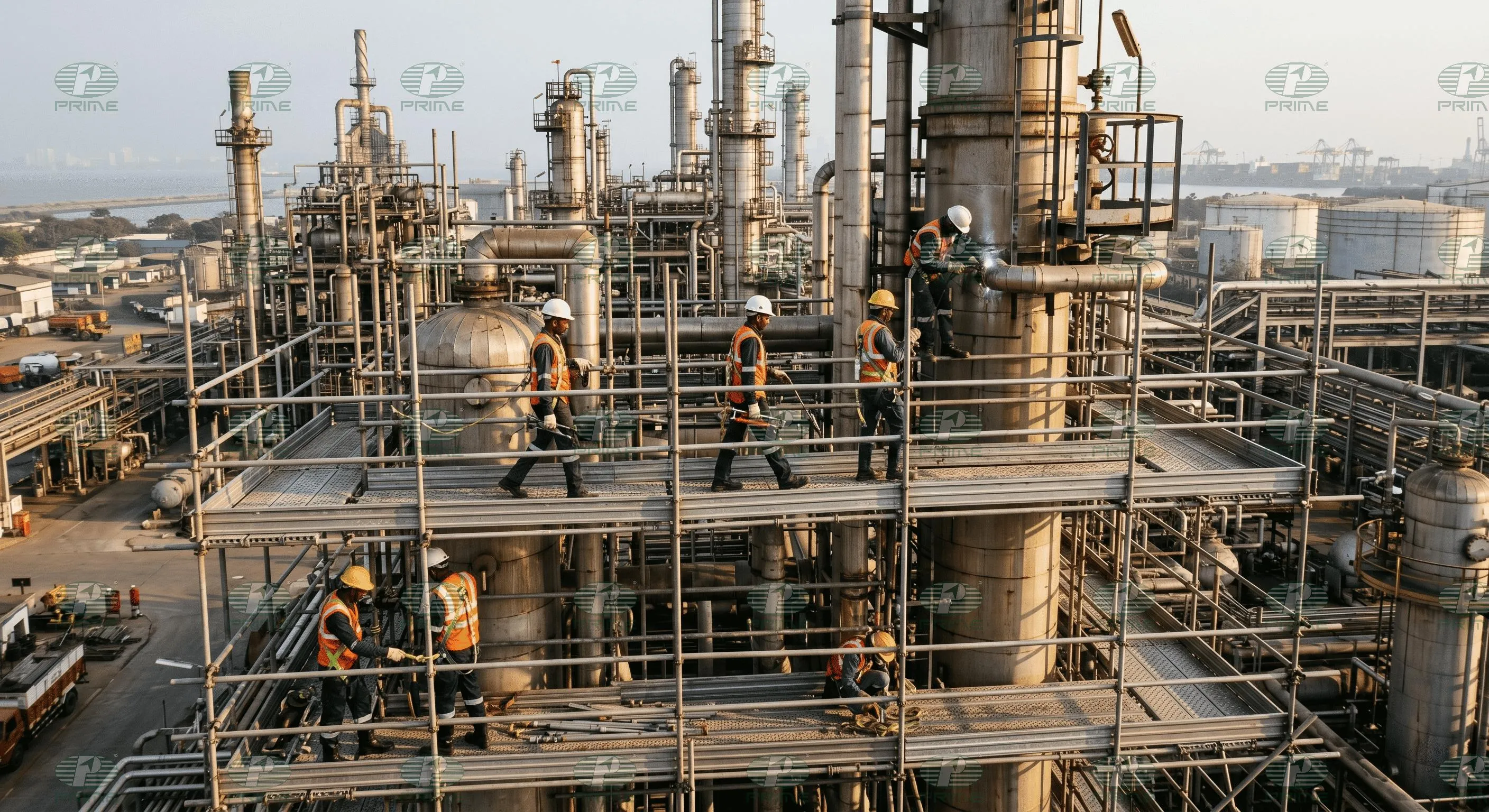

Oil & Gas Refineries
Fire-proof steel prevents safety risks in flammable zones.

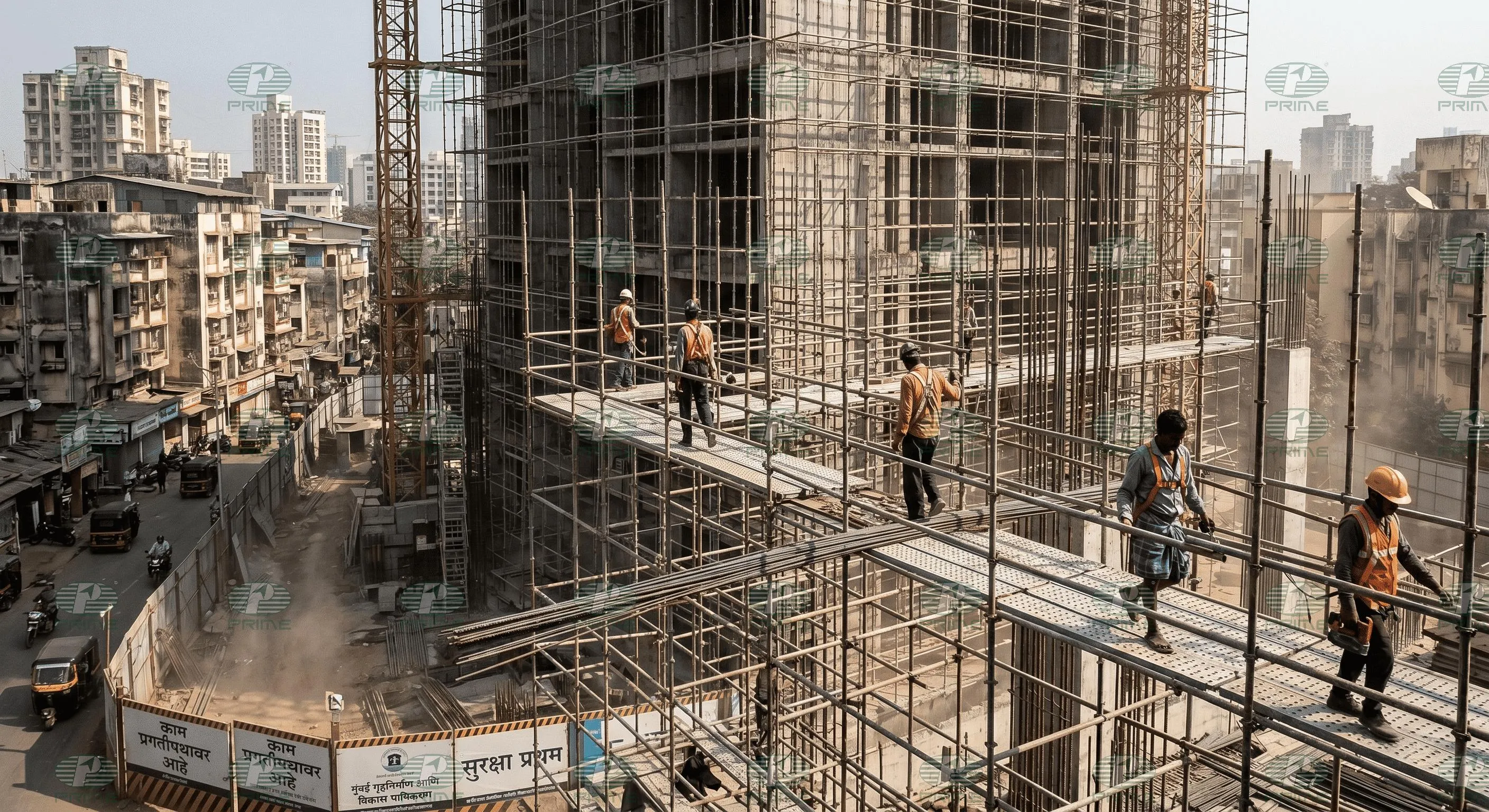

High-Rise Commercial
Interlocking design resists high-altitude uplift.
Walkway%20Plank%20Solar%20Rooftop.Cgc9wvsV_Z1Izwkb.webp)

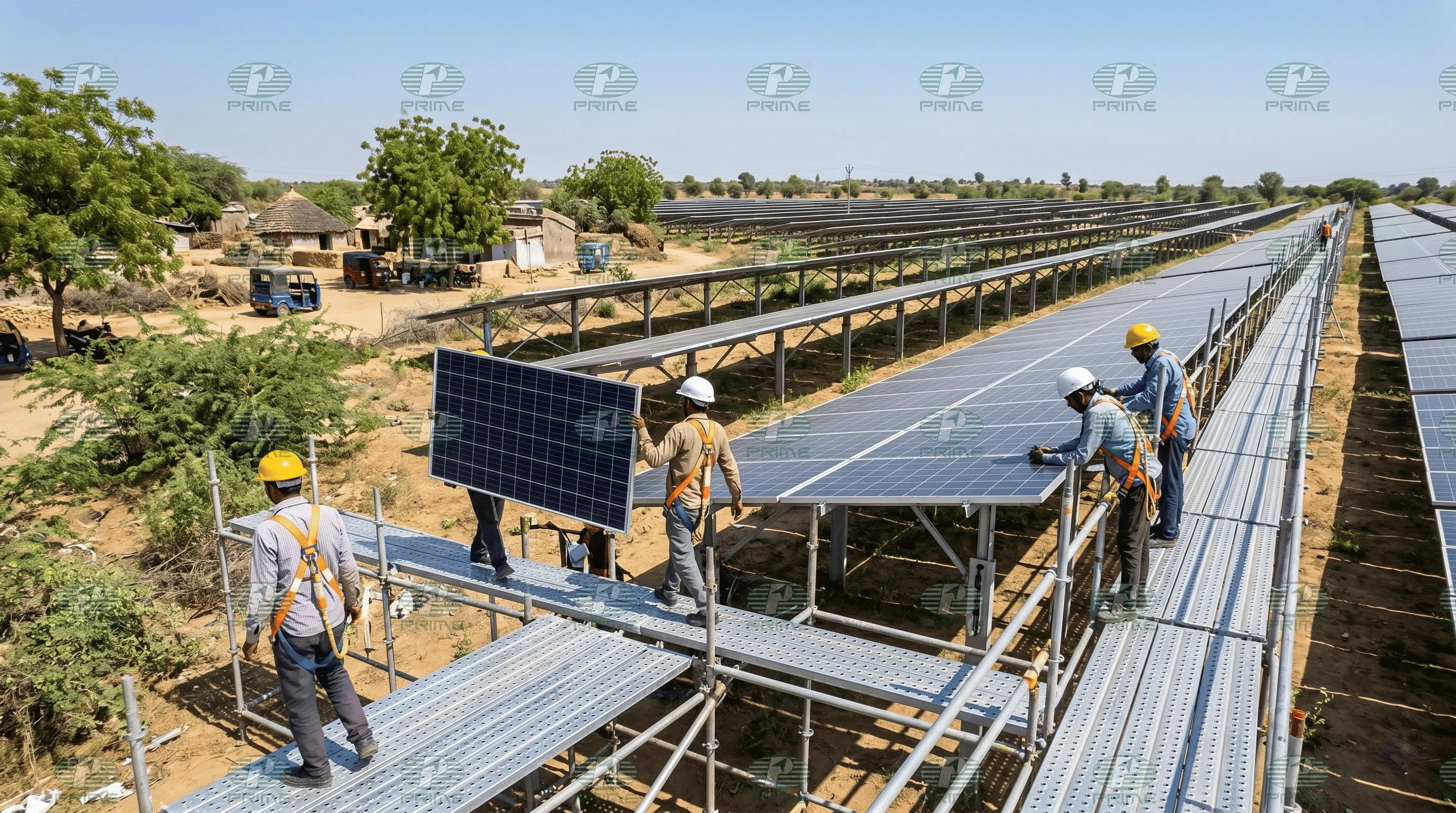

Solar Rooftop
Secure, slip-resistant pathways for maintenance.
Rapid Erection Protocol
Align on Ledgers
Position hooks directly over horizontal ledgers.
Snap to Lock
Downward pressure seats the hooks flush.
Immediate Access
Platform is instantly load-bearing and secure.
See It. In Action .
Introducing Prime Steeltech India Anti-Skid Walkway Planks – engineered to provide a safe, stable, and durable working platform for scaffolding applications.
Watch our manufacturing process in action
Technical Specifications
| Parameter | Specification | Standard |
|---|---|---|
| Steel Grade | IS 2062 E250 | IS 2062 |
| Board Width | 300mm / 280mm / 240mm | System Compatible |
| Board Length | 1250mm / 2000mm / 2500mm / 3000mm (Custom on request) | System Compatible |
| Deck Thickness | 2mm / 1.6mm (14/16 Gauge) | IS 2062 |
| Galvanising | Min 45 µm zinc, Pre Galvanized | EN ISO 1461 |
| Stiffener Spacing | 500mm c/c transverse; longitudinal added above 400mm width | IS 816 |
| Safety Factor | Min 4x intended load | IS 3696 |
| Deflection Limit | Span / 60 | IS 3696-1987 |
| Max Plank Gap | 25mm | IS 3696 |
| Overhang | 50mm min / 150mm max | IS 3696 |
| Anti-Skid Options | Antiskid Dimple Plate (std), Diamond Checker (on request), Checker Plate (on request) | IS 3696 |
| Compatible Systems | Tube-and-Coupler, Cuplock, Frame Scaffold, Ringlock | IS 4014 |
